All-in-one design for small collaboration spaces

All-in-one Design Creates Simpler Deployment

Design

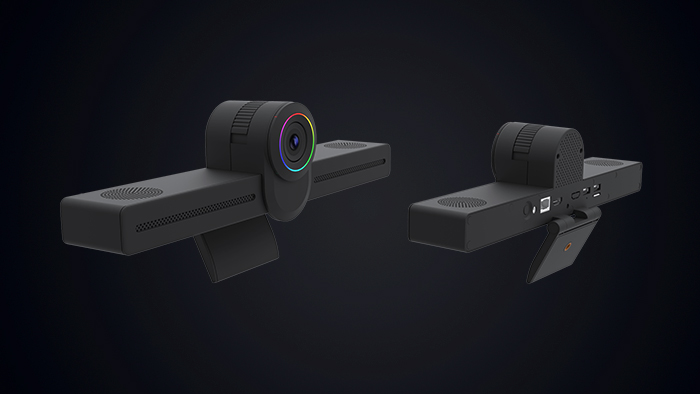

HD8 is integrated with codec, Full-HD camera and Hi-Fi audio, with the all-in-one design that minimizes cable clutter, it optimizes the collaboration experience in huddle rooms.

A wide view for small spaces

View

HD8 brings remarkable video quality to small

conference rooms. Its 90-degree field-of-view easily

accommodates huddle rooms where people sit on

either side of the camera. No pan and zoom required.

Simple video conference, high productivity

Simple

Video conferencing is being a very important way that improves the efficiency of teamwork.

HD8 has built-in Android system that works well

with most of video collaboration applications-

Skype, Zoom, WebEx-to name a few.

More Features

Hi-Fi

Built-in Hi-Fi audio, enhanced echo and noise cancellation technology

Encoding

Supports hardware encoding, up to 1080p@30fps video quality

Support

Your website visitors will quickly notice your Lottie animation headings.

Key Features

All-in-one design

Compact all-in-one form factor takes up less space and minimizes cable clutter.

Integrated codec

Powerful codec with H.264 hardware encoding technology, enables HD video conferencing easily.

Full HD 1080p camera

The six-element glass and full HD 1080p camera captures razor-sharp, clear images .

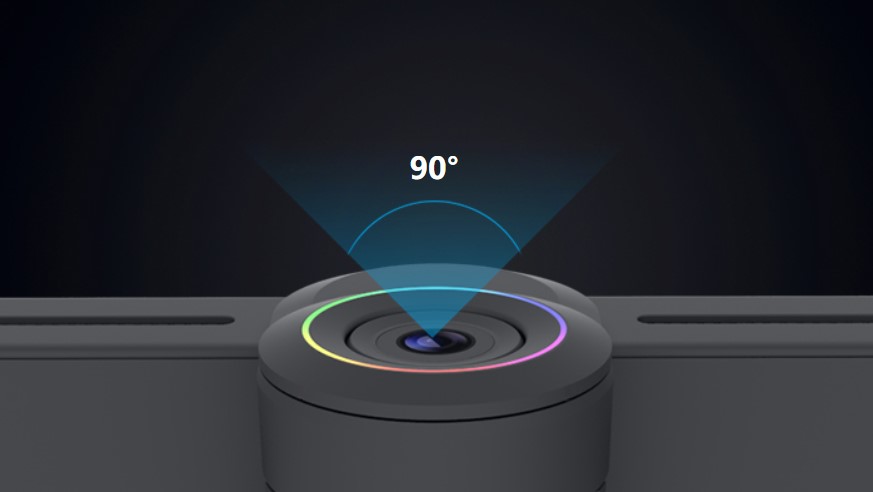

90° wide field of view

The wide field of view makes everyone can be seen in the huddle room. And it’s perfect for product for product demos and reviews.

2 microphone arrays and high quality speaker

Two beamforming microphone arrays with noise and echo cancellation, plus a built-in high quality speakerto make all the participants to hear and be heard clearly.

Additional camera tilting

Designed with tilting lens for adjusting camera angle to work with different room configurations.

Dual band Wi-Fi

Support 2.4 GHz/ 5 GHz dual band Wi-Fi connection. A stable wireless network connection brings smooth video conferencing experience.

Works with most video collaboration apps

Based on Android system, it is compatible with most of Android video collaboration apps, including the ones that you already use.

Multiple mounting options

Freedom to mount FHD8 wherever it works best—on the top of TV, wall, or camera stand—for the best possible huddle room experience.

Open API and SDK

Supports application adaptation and system customization to fit different demand well.

Specifications

Integrated Codec

Android 5.1
Quad-core Cortex-A17 up to 1.8GHz
RAM: 2GB DDR3
ROM: 16GB eMMC
Encoder: H.264 hardware encoding up to 720p@30fps

Camera

Resolutions: 1080p@30fps, 720p@30fps, 480p@30fps, 240p@30fps
35 MP image sensor
Horizontal field of view: 90°
Image output format: MJPEG, 264 Main Profile
Auto exposure and white balance

Audio Features

Built-in 2 beamforming microphone arrays
10ft / 3 meters voice pickup range
Expansion microphone (optional)
Acoustic echo cancellation
Automatic noise reduction
Built-in 1 high-quality speaker

Physical Interfaces

2 x USB 2.0
1 x HDMI output
1 x line-in ( 3.5 mm )
1 x 10/100 Mbps Ethernet port
1 x DC port
1 x TF/Micro SD card reader port

Network and Wireless Connection

10/100 M bps Ethernet
4 GHz/5 GHz dual band Wi-Fi
Bluetooth 4.0

Other Physical Features

Dimension (W.D.H): 300mm X 72.7mm X 81mm
Power : 100 to 240 VAC, 50/60 Hz, 5V DC input
Power consumption : max 10W
Operating humidity: 10% to 90% relative humidity
Operating temperature: 0°C to 40°C ambient temperature

Warranty Information

1-year limited hardware

Package Includes

Digimax DigiFHD8 all-in-one endpoint

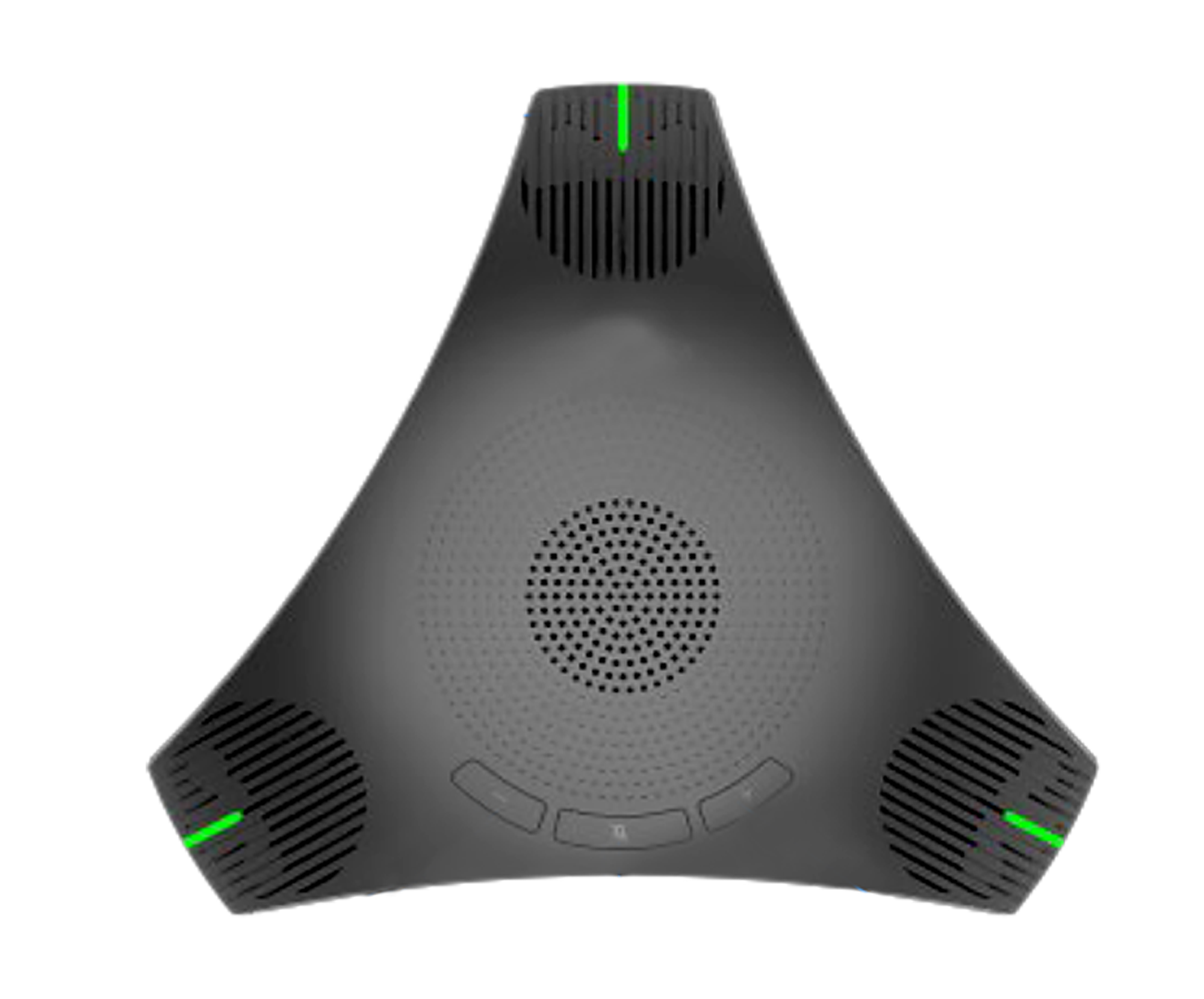

MIC TRIO expansion microphone (optional)
HDMI cable
Power adapter
Remote control
User manual
